Pipe fittings are essential components of any plumbing system, and elbows are some of the most commonly used types of fittings. Elbows are used to change the direction of pipe runs, allowing pipes to snake around obstacles and reach various parts of a building. In this blog post, we'll take a closer look at pipe fitting elbows and explore their role in modern plumbing.

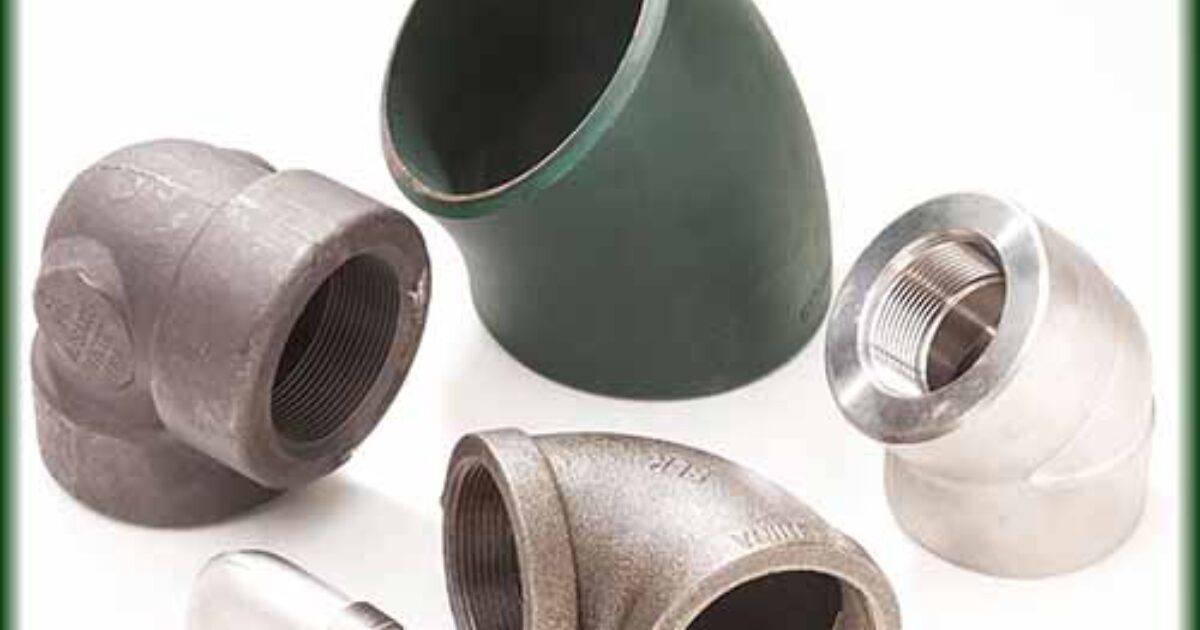

What are Pipe Fitting Elbows?
An elbow is a type of pipe fitting that allows a pipe to change direction by 90 degrees. When two pipes meet at a corner, an elbow can be used to connect them at a right angle. Elbows are typically made from a variety of materials, including brass, copper, PVC, and stainless steel. They come in various sizes, ranging from small ¼-inch fittings to larger ones that measure several feet in diameter.
Types of Pipe Fitting Elbows
There are several different types of pipe fitting elbows available, each designed for specific applications. Here are some of the most commonly used types of elbows:
- 45-Degree Elbows: A 45-degree elbow is used when a pipe needs to be redirected at a 45-degree angle. These fittings are commonly used in drainage systems, irrigation systems, and HVAC systems.
- 90-Degree Elbows: A 90-degree elbow is the most common type of elbow, used when a pipe needs to be redirected at a 90-degree angle. These fittings are used in all types of plumbing systems, including water supply systems, gas pipelines, and drainage systems.
- Long-Radius Elbows: A long-radius elbow has a larger radius than a standard elbow, resulting in a more gradual change in the direction of the pipe. These fittings are used when a smoother flow of fluid or gas is needed, such as in HVAC systems or water treatment plants.
- Short-Radius Elbows: A short-radius elbow has a smaller radius than a standard elbow, resulting in a more abrupt change in the direction of the pipe. These fittings are commonly used in tight spaces where a smaller bend radius is required.
Uses of Pipe Fitting Elbows
Elbows are used in a wide range of plumbing systems, including residential, commercial, and industrial applications. Here are some of the most common uses of pipe fitting elbows:
- Connecting pipes at right angles: Elbows are used to connect pipes at right angles, allowing them to change direction and reach various parts of a building.
- Avoiding obstacles: Elbows are used to avoid obstacles such as walls, beams, and other pipes that may be in the way of a straight pipe run.
- Reducing pressure drop: Elbows with larger radii can help reduce pressure drop in a plumbing system, resulting in a more efficient flow of fluids or gases.
- Accommodating different pipe sizes: Elbows can be used to connect pipes of different sizes, allowing plumbers to create a seamless and smooth transition between two pipes of different diameters.
Conclusion
In conclusion, pipe fitting elbows play a critical role in modern plumbing systems. They allow pipes to change direction and reach various parts of a building, all while avoiding obstacles and reducing pressure drop. Whether you're working on a residential or commercial project, choosing the right type of elbow for your plumbing system is essential to ensure a smooth and efficient flow of fluids or gases. With proper installation and maintenance, pipe fitting elbows can provide reliable service for many years to come.
