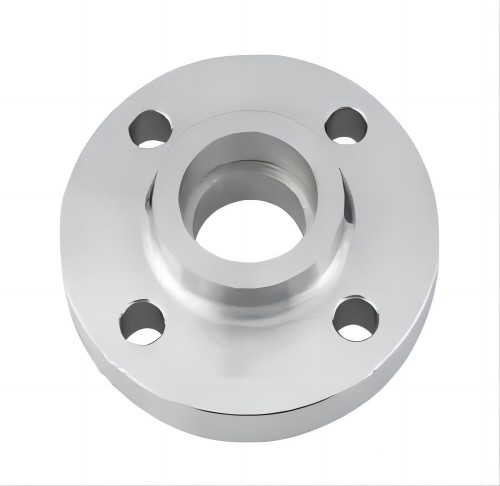

ASME ANSI B16.5 Stainless Carbon Steel Socket Weld Flange

Name:Socket Weld Flange Standard:ASME/ANSI B16.5,JIS B2220,JIS B2238 Material:Stainless Steel /Carbon Steel Specifications:1/2"-3" Class150-Class300 Connection mode:Welding Production method:Forging Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency, Payment: T/T, L/C, PayPal Any inquiries we are happy to reply, please send your questions and orders. Stock Sample is Free & Available

Products Details

Weld Neck This flange is circumferentially welded into the system at its neck which means that the integrity of the butt welded area can be easily examined by radiography. The bores of both pipe and flange match, which reduces turbulence and erosion inside the pipeline. The weld neck is therefore favoured in critical applications erosion inside the pipeline. The weld neck is therefore favoured in critical applications. Slip-on This flange is slipped over the pipe and then fillet welded. Slip-on flanges are easy to use in fabricated applications. Blind This flange is used to blank off pipelines, valves and pumps, it can also be used as an inspection cover. It is sometimes referred to as a blanking flange. Socket Weld This flange is counter bored to accept the pipe before being fillet welded. The bore of the pipe and flange are both the same therefore giving good flow characteristics. Threaded This flange is referred to as either threaded or screwed. It is used to connect other threaded components in low pressure, non-critical applications. No welding is required. Lap Joint These flanges are always used with either a stub end or taft which is butt welded to the pipe with the flange loose behind it. This means the stub end or taft always makes the face. The lap joint is favoured in low pressure applications because it is easily assembled and aligned. To reduce cost these flanges can be supplied without a hub and/or in treated, coated carbon steel. Ring Type Joint This is a method of ensuring leak proof flange connection at high pressures. A metal ring is compressed into a hexagonal groove on the face of the flange to make the seal. This jointing method can be employed on Weld Neck, Slip-on and Blind Flanges.

Type

Stainless steel flange,Carbon steel flange,Socket Weld Flange

Standard

ASME,ANSI,DIN,JIS,BS

Material

Stainless steel,Carbon steel

Pressure

Class(150lb-1500lb)

Size

1/2"-24"

Surface

Anti-rust Oil, Transparent/Yellow/Black Anti-rust Paint, Zinc Galvanized, Flame plating

Applications

Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc

Package

Standard export package,wooden case

Payment item

L/C, T/T, D/P, Western Union, Paypal, Money Gram

     Socket welding flange refers to the flange in which the end of the pipe is inserted into the flange ring step and welded on the pipe end and the outside. There are two types with and without neck. The flange with neck pipe has good rigidity, small welding deformation and good sealing performance, and can be used in the occasions where the pressure is 1.0~10.0MPa. Type B flanges for containers are also socket welding flanges, which are used in occasions with high sealing requirements. When designing, the socket welding flange can be checked according to the integral flange.
     Socket welding is usually used for small pipes smaller than DN40 in diameter and is more economical. Socket welding is the process of first inserting a socket and then welding (for example, there is a type of flange called a socket flange, which is a projection weld flange, which is a connection when connecting to other parts, such as valves. Socket welding Usually the pipe is inserted into the flange and welded. Socket welding can be used for magnetic particle or penetration testing (carbon powder, penetrating carbon steel such as stainless steel) and is recommended if the fluid in the pipe does not require high welding requirements Socket welding, the type of connection that is easy to detect is mainly small-diameter valves and pipes, which are used for pipe joints and pipe welding. Small-diameter pipes usually have thin walls, which are prone to edge dislocation and ablation, and are difficult to butt welding, suitable for socket welding. Socket weld and socket. Welded sockets are often used under high pressure due to their reinforcing effect, but socket welding also has disadvantages. One is that the stress state after welding is not good, and it is difficult to completely melt. Trends are: piping systems with gaps and therefore unsuitable for crevice corrosion-sensitive media and piping systems with high cleanliness requirements; the use of socket welds; and ultra-high pressure piping. Large wall thicknesses are available even in small diameter pipes, and socket welds can be avoided as much as possible by butt welding.
