Shop Direct From Our Factory - DIN2615 Equal Reducing Tee In Carbon And Stainless Steel For Welding

Data

Tee
Product description	DIN2615 butt-welding seamless pipe fitting tee
Size	Seamless 1/2"- 18" Welded: 20"-80"
Wall Thickness	SCH10, SCH20, SCH30, STD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160,
	XXS, DIN, JIS standard thickness
Standard	ASTMA234, ASTM A420, ANSI B16.9/B16.28/B16.25, ASME B16.9,
	JIS B2311-1997/2312, JIS B2311/B2312, DIN 2605-1/2617/2615,
	GB 12459- 99, EN Standard etc.
Material	A234 WPB, WP5, WP9, WP11,
	ST37.0, ST35.8, ST37.2, ST35.4/8, ST42, ST45, ST52, ST52.4
	STP G38, STP G42, STPT42, STB42, STS42, STPT49, STS49
Application	Low and middle pressure fluid pipeline, boiler, petroleum and natural gas industry, drilling, chemical industry, electric industry, shipbuilding, fertilizer equipment and pipeline, structure, petrochemical, pharmaceutical industry.
Surface	Black painting, varnish paint, anti rust oil, hot galvanized, cold galvanized, 3PE, etc.
Related products	1. Carbon steel nipples and sockets
	3. Malleable iron pipe fittings
	5. Ductile iron pipe fittings
Customers' drawings or designs are available.
Package	1> 1/2" - 2" in cartons.
	2>Above 2" in wooden cases.
Big size is workable by pallets.
Delivery details	According to the quantities and specifications of each order.
Normal delivery time is from 30 to 45 days after receiving the deposit.

Product Introduction

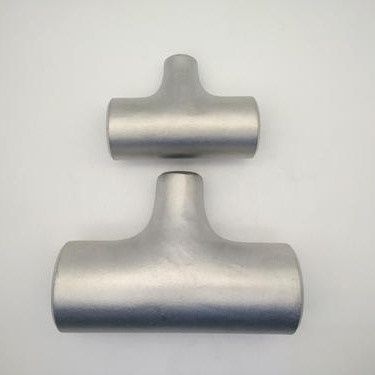

DIN2615 is the German standard for tee and DIN2605-1 is the German standard for steel butt-welded pipe fittings, equivalent to the national standard GB/T 12459. Including equal and reducing tees. What is the difference between equal tee and reducing tee? When we discuss a tee with size NPS 3, the tee is an equal diameter tee. When we discuss a size of NPS 3 × 2, the tee is a reducing tee. The formal expression should include three dimensions, such as: 3 × three × 2. The first two numbers are the two sizes of the main pipe, and the last number represents the pipe size of the branch pipe. This expression method comes from the case that the tee has three dimensions. However, this kind of tee with three different sizes is rarely used now, and has usually been replaced by a combination of an equal tee and a concentric or eccentric reducer. Equal tee can be supplied in all conventional sizes. However, reducing tee is different because many sizes are not produced or cannot be produced. Example: NPS 6 × 4 reducing tee is a standard conventional tee for the manufacturer, but the size is NPS 16 × 2. The reducing tee is not practical and economical for manufacturers. In this case, a bypass fitting such as a olet will be used.

DIN2615 Equal Reducing Tee Welding Carbon Stainless Steel
