- They both have the functions of change the diameter and stabilize the fluid.
- Concentric Reducer is symmetrical, both ends are aligned along the center, while eccentric is not symmetrical, ends are off center of one another.
- Eccentric Reducer can be used in reverse as an eccentric increaser/expander.
- Ecc reducer can avoid the bad effect of liquid or gas accumulation on pipeline
Features
Stainless Steel pipe reducer is widely used in many fields, since the excellent properties of stainless steel. A403 WP304 and WP316 pipe reducer is one of the most common material at present, and corrosion resistance is an important index to measure SS 316 pipe reducer. As a result, the stainless steel passivization has been carried out, and the structure of the passivization film with good protective effect has been studied deeply. CS reducer’s construction is stronger than SS reducer. It is wear-resisting, and can withstand high pressure but is also susceptible to corrosion. Eccentric reducer with different diameters at both ends is used to connect pipes or flanges with different diameters for diameter reduction. The nozzles at both ends of the eccentric reducer are on the same axis. When reducing the diameter, if the position of the pipe is calculated based on the axis, the position of the pipe will remain unchanged. It is usually used to reduce the diameter of gas or vertical liquid pipes. The two ends of the eccentric reducer are internally connected on the circumference of the nozzle, and are generally used for horizontal liquid pipelines. When the tangency point of the eccentric reducer nozzle is upward, it is called top flat installation. It is generally used at the pump inlet to facilitate exhaust. The tangency point downward becomes the bottom flat installation. It is generally used for the installation of the control valve and for exhaust. The eccentric reducer is beneficial to the flow of fluid and has little interference on the flow state of fluid when reducing the diameter. Therefore, the gas and vertical flow liquid pipelines adopt concentric reducer to reduce the diameter. Because the side of the eccentric reducer is flat, it is convenient for exhaust or drainage, driving and maintenance. Therefore, the liquid pipeline installed horizontally generally adopts eccentric reducer.
Application Field
Chemical Petrochemical Refineries Fertilizers Power Plant Nuclear Power Oil & Gas Paper Breweries Cement Sugar Oil Mills Mining Construction Shipbuilding Steel PlantPerformances and Effects
Eccentric reducer is mainly used to solve the problem of different diameters when connecting pipes, and it also has the function of shock absorption and noise reduction. Eccentric reducer greatly saves the parts and costs of pipeline installation. It is composed of inner rubber layer, fabric reinforcement layer, middle rubber layer, outer rubber layer, end reinforcement metal ring or wire ring, metal flange or flat movable joint. The installation of eccentric reducer in the pump is mainly used to prevent corrosion, and the reducer at the inlet and outlet of the pump should be installed flatly to prevent the gas phase in the pipe from gathering at the pump outlet, forming large bubbles into the pump cavity and damaging the pump. Only in one case can it be installed low and flat, that is, the elbow directly connected to the back of the reducer and bent upward, in which case the gas phase cannot gather. The eccentric reducer can also reduce the pipe noise when working.Product Discription
| Stainless Steel Pipe fittings Reducer | ||||||||||||||

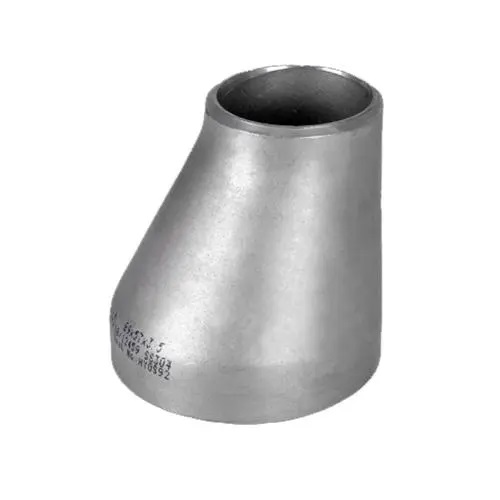

| Type: | Stainless Steel Eccentric Reducer | |||||||||||||
| Forming: | Press Forming | |||||||||||||
| Surface finish: | Shot blasting, Sand blasting or Pickling surface | |||||||||||||
| Standard: | ASME/ANSI B16.9, JIS B2311/2312/2313, DIN2605/2615/2616/2617, EN10253, MSS SP-43/75 | |||||||||||||
| Size: | Seamless DN15 (1/2") - DN600 (24") | |||||||||||||
| Welded DN15(1/2") - DN1200 (48") | ||||||||||||||
| WT: | SCH5S-SCH160 | |||||||||||||
| Material: | 304, 304L, 304/304L, 304H, 316, 316L, 316/316L, 321, 321H, 310S, 2205, S31803, 904L, etc. | |||||||||||||
