Product Introduction

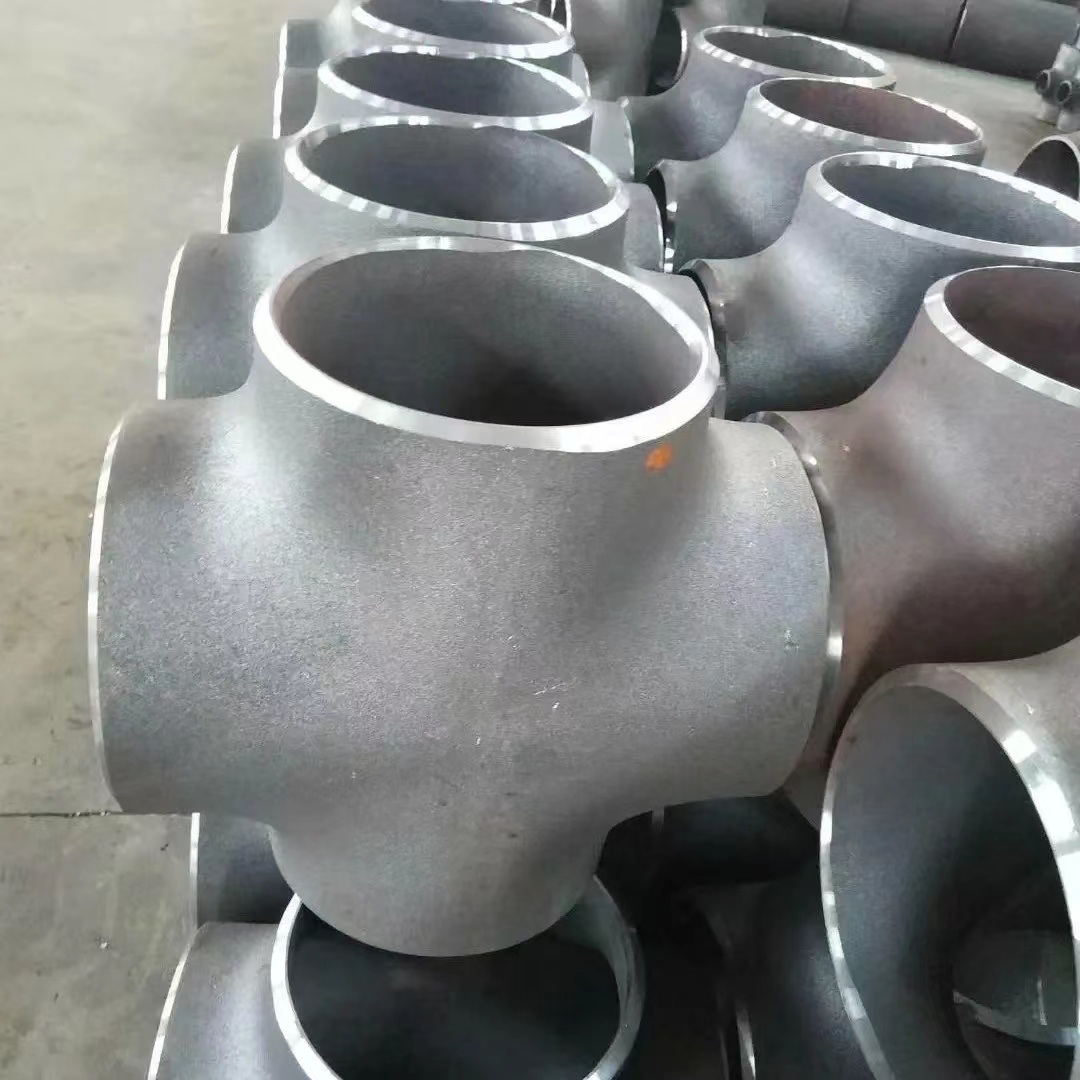

Stainless steel cross refers to a water pipe joint made of stainless steel, which is a pipe fitting used at the branch of the pipe.
The cross is a pipe fitting and pipe connector. Also called pipe cross or cross pipe fitting, cross joint is used at the place where the main pipe needs to branch.
Four-way can be divided into equal-diameter and reduced-diameter, and the nozzle ends of equal-diameter four-way are of the same size; The main pipe size of the reducing cross is the same, while the branch pipe size is smaller than the main pipe size. The cross is a pipe fitting used at the branch of the pipe. For the manufacturing of the cross with seamless pipe, there are currently two commonly used processes: hydraulic bulging and hot pressing.
Standard
According to manufacturing standards, it can be divided into national standards, electric standards, water standards, American standards, German standards, Japanese standards, Russian standards, etc., for example, GB/T12459, GB/T13401, ASME B16.9,SH3408,SH3409,HG/T21635,DL/T 695,SY/T 0510,DIN 2615
Data Details
Technics | Seamless Cross, Welded Cross | |||||||
Size | 1/2"-48"(DN15-DN1200) | |||||||
Varieties | SCH5,SCH10,SCH20,SCH30,STD, SCH40, SCH60, | |||||||
XS, SCH80, XXS,SCH100,SCH120,SCH140,SCH160 | ||||||||
Standard | ANSI B 16.9/ANSI B16.28/MSS SP43/MSS P75/JIS2311/JIS 2312/JIS2313/ DIN2615 /GB-12459/GB-T13401,Gost17375 | |||||||
Material | Carbon steel: ASTM A234 GR WPB , ST37.2 , ST35.8... | |||||||
Alloy steel: A234 WP5/WP9/WP11/WP22/WP91, A420 WPL6,A860 WHPY 42/52/60/65/70/80... | ||||||||
Stainless steel: A403 WP304/TP304 , WP304L/TP304L , WP316/TP316 ,WP316L/TP316L, WP321/TP321 , WP310/TP310….. | ||||||||
Surface treatment | Carbon steel:Shot blasted, black painting, rust-proof oil, transparent oil, galvanizing,, hot galvanizing | |||||||
Alloy steel:Shot blasted, black painting, rust-proof oil,transparent oil, galvanizing,, hot galvanizing | ||||||||
Stainless steel: pickled,Polish | ||||||||
Application Fields | Chemical Industry /Petroleum Industry /Power Industry/Metallurgical Industry/Building Industry /Ship-building Industry |
