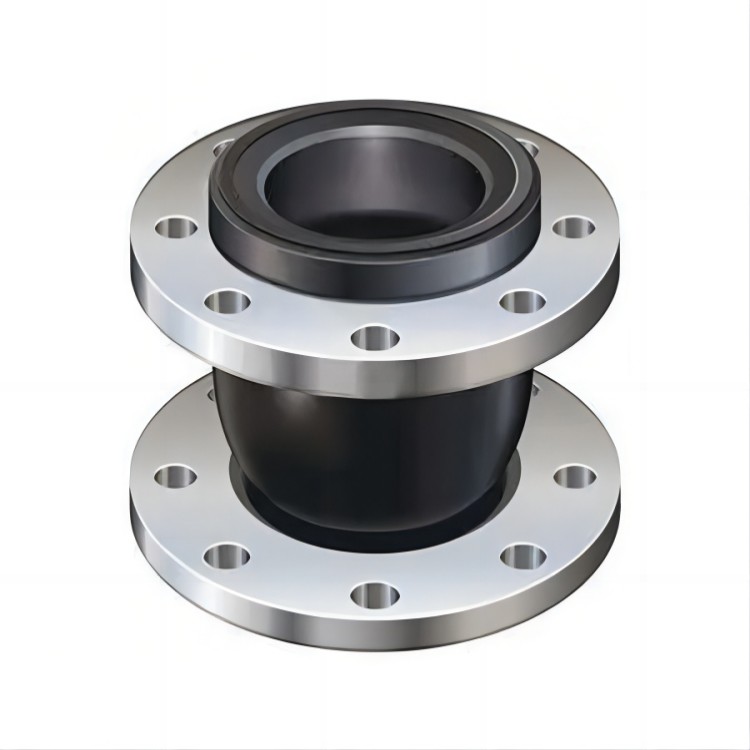

Single Sphere Rubber Flexible Joints

Name:Single Sphere Rubber Flexible Joints Material:Carbon steel Stainless steel Specifications:1 1/4"-128" DN32-DN3200 Connection mode:Flange Surface treatment: Galvanized Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency, Payment: T/T, L/C, PayPal Any inquiries we are happy to reply, please send your questions and orders. Stock Sample is Free & Available

Products Details

Product Introduction

Flexible single ball rubber joint is referred to as rubber joint for short. Rubber flexible joint is composed of rubber parts reinforced by fabric and flat movable joint, loose metal flange or threaded pipe flange, which is used for vibration isolation, noise reduction and displacement compensation of pipeline. It is a pipe joint with high elasticity, high air tightness, medium resistance and weather resistance.

Classification

According to the shape, it can be divided into concentric equal-diameter, concentric reducer and eccentric reducer. According to structure, it is divided into single sphere, double sphere and elbow sphere  According to the connection type, it is divided into flange connection, threaded connection and threaded pipe flange connection. According to working pressure: 0.25 MPa, 0.6 MPa, 1.0 MPa, 1.6 MPa, 2.5 MPa

Single-sphere flexible rubber joint is also known as single-sphere rubber joint, rubber flexible joint, shock absorber, flange flexible joint, rubber flexible joint and rubber pipe joint

Joint specification: DN20mm-DN1200mm
Connector color: Black. See the product display picture for the color of the real object
Scope of use: Acid, alkali, sea water, oil, hot water, etc
Executive standard: GB/T26121-2010
Flange standard: GB/T9115.1-2000 GB/T9119-2010 HG20592-2009
Production standard: American standard, Japanese standard, English standard and Korean standard
Joint material: Natural rubber EPDM butyronitrile neoprene silicone
Working temperature: - 40 ° C to 80 ° C (high temperature resistant rubber joint can also be processed)
Burst pressure: 3 times of service pressure

Characteristic

1. It is a pipe joint with high elasticity, high air tightness, medium resistance and weather resistance. It has high internal density, can withstand high pressure, and good elastic deformation effect. 2. It has the characteristics of high pressure resistance, good elasticity, large displacement, good shock absorption and noise reduction effect, and convenient installation. It can be widely used in water supply and drainage, HVAC, fire protection, compressor, paper making, pharmaceutical, ship, water pump, fan and other pipeline systems. 3. The rubber joint is composed of rubber parts reinforced by fabrics and loose metal flanges, which is used for vibration reduction and noise reduction of pipes and displacement compensation.

Effect

The flexible single-ball rubber joint can greatly reduce the vibration and noise of the pipeline system, and fundamentally solve the problems of interface displacement, axial expansion and different centricity of various pipelines. According to different materials, the flexible single-ball rubber joint can be made into various varieties, such as acid-resistant, alkali-resistant, corrosion-resistant, oil-resistant, heat-resistant, etc., which can adapt to various media and environments. The flexible single-ball rubber joint material is polar rubber, with good sealing, light weight, convenient installation and maintenance, long service life, but avoid contact with sharp metal instruments to avoid puncturing the ball. If flexible single-ball rubber joint is used overhead, it can be equipped with elastic support, and the bolts shall be tightened by diagonal method during installation. If the pipeline pressure of flexible single-ball rubber joint is too high, limit bolts shall be used to connect the flanges at both ends. During the manufacturing process, the inner layer is under high pressure, and the nylon cord fabric and rubber layer are better combined. The working pressure is higher and the quality is better than the ordinary flexible rubber joint. Its feature is that the inner rubber layer is integrated, smooth and seamless, and the label adopts vulcanization process, which is combined with the product.

Data Details

QQ截图20230111151232

Picture Presentation
