Stainless Steel 304 316 316L ANSI, DIN, GB, JIS, GOST Anchor Flange Oil and Gas Field

Name：Anchor Flange Standard：ANSI, DIN, GB, JIS, GOST Material：Carbon Steel Specifications：1/2"-60" Pressure Rating: Class150#-2500# Connection mode：Welding Production method：Forging Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency, Payment: T/T, L/C, PayPal Any inquiries we are happy to reply, please send your questions and orders. Stock Sample is Free & Available
send email to us

Products Details

Product Data

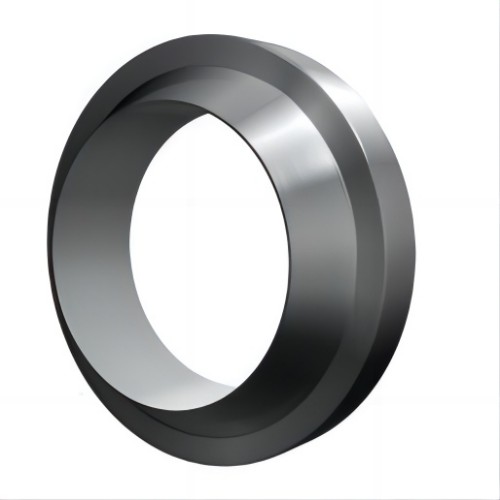

Product Name Stainless Steel Anchor Flange
Size 1/2"-24"
Pressure 150lb, 300lbs,600lb, 900lb, 1500lb,2500lb
Standard ANSI B16.5 ,ANSI B16.47
Wall thickness SCH5S, SCH10S, SCH10, SCH40S,STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, XXS and etc.
Material Stainless steel: A182F304/304L, A182 F316/316L, A182F321,  A182F310S, A182F347H, A182F316Ti,  317/317L, 904L, 1.4301, 1.4307, 1.4401, 1.4571,1.4541, 254Mo and etc.
Carbon steel: A105, A350LF2, S235Jr, S275Jr, St37, St45.8, A42CP, A48CP, E24 , A515 Gr60, A515 Gr 70 etc.
Duplex stainless steel: UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 , UNS32760, 1.4462,1.4410,1.4501 and etc.
Pipeline steel: A694 F42, A694F52, A694 F60, A694 F65, A694 F70, A694 F80 etc.
Nickel alloy: inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H,C22, C-276, Monel400, Alloy20 etc.
Cr-Mo alloy: A182F11, A182F5, A182F22, A182F91, A182F9, 16mo3,15Crmo, etc.
Application Petrochemical industry;avation and aerospace industry;pharmaceutical industry;gas exhaust;power plant;ship buliding;water treatment,etc.
Advantages ready stock,faster delivery time;available in all sizes,customized;high quality

Product Introduction

Anchor Flange is a flange used to connect pipelines and equipment. It has the function of anchoring and fixing pipelines and can be used to connect pipelines and equipment in high temperature, high pressure or high vibration environments. Anchor flanges usually consist of two parts, one is the flange itself, and the other is the anchor rod used to fix the pipe. The following is a detailed introduction of the anchor flange: Anchor flanges are mainly composed of flanges, anchor rods and bolts. The flange part includes a flange with a hole and a flange with a flange, and the two flanges are connected by bolts and gaskets. Anchor rods are usually made of steel rods and are passed through the pipe through the hole in the flange and fixed to the equipment. Size The size and standard of the anchor flange are determined by the design and manufacturing standards, the most common standards are ASME B16.5 and ASME B16.47, etc. The size of the anchor flange can be selected according to the size and pressure rating of the pipeline. Pressure Level The pressure rating of the anchor flange can be selected according to the pressure of the pipeline. Common pressure ratings include Class 150, Class 300, Class 600, Class 900 and Class 1500, etc. How to use The use of anchor flanges is mainly to fix pipes and equipment together through anchor rods. First, connect the flanges with the pipe, and place an appropriate number of gaskets between the flanges. Then, thread the anchor through the hole in the flange and secure it to the unit on the other side. Finally, by tightening the bolts, the gasket between the flanges is squeezed, creating a tight seal. Applications Anchor flanges are mainly used to connect pipelines and equipment with high temperature, high pressure or high vibration. They are commonly used in industries such as the oil and gas industry, chemical industry, power plants, nuclear power plants, paper mills and shipyards. Because the anchor flange has excellent pressure and vibration resistance, it can ensure the safe and stable operation of pipelines and equipment.

Picture Presentation
